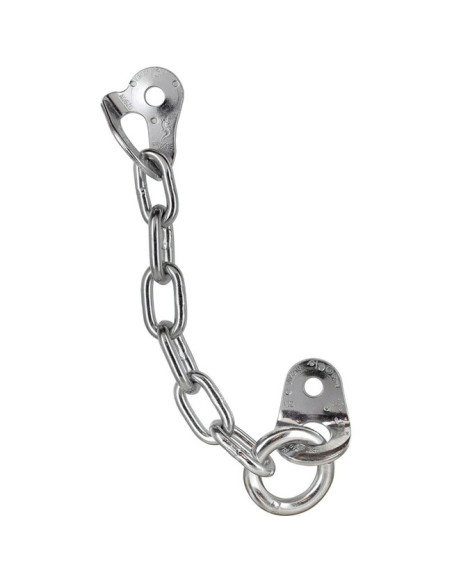

Type D meeting in 316L stainless steel, for outdoor environments ecotri galvanized, for indoor environmentsTwo fixing points made up of a Fixe 1 plate at the upper end and Fixe 2 at the lower end, both for M10 M12 screwsAnchor point with ringDesigned and manufactured in Barcelona-Pirineus COMPONENT CHARACTERISTICS Fixe 1 plate geometry: Rounded inner edge for less wear on carabiners Directs the carabiner for optimal work on roofs Conical Washer More control in tightening torque Three anti-rotation pins Optimized surface to achieve a contact plenoFeatures Fixe 1 plate: For M10 M12 screws Weight: 57g (M10) 56 (M12) Limit resistance: 25kN Material: galvanized ecotri stainless steel 316L Characteristics of the Fixe 2 plate: Point of contact with the oval-shaped ring Increases the useful life of the set Conical Washer Improves the tightening torque Three anti-rotation pins For M10 M12 screws Limit resistance: 25Kn Material: available in 316L stainless ecotri-galvanized steel Characteristics of the ring: Ring always present between components for better maneuverability TIG welded Better corrosion resistance Inner diameter : 33mm Ultimate resistance: 25kN Material: 316L stainless steel ecotri zinc plated Features of 316L stainless steel chain: TIG welding Better corrosion resistance Reduction of the number of links to three Less number of critical points Link rod diameter: 7mm Length useful: 185mm Limit resistance: 25kN Material: 316L stainless steel Characteristics of the ecotri galvanized steel chain: Link rod diameter: 7mm Useful length: 185mm Limit resistance: 25kN Material: ecotri galvanized steel
